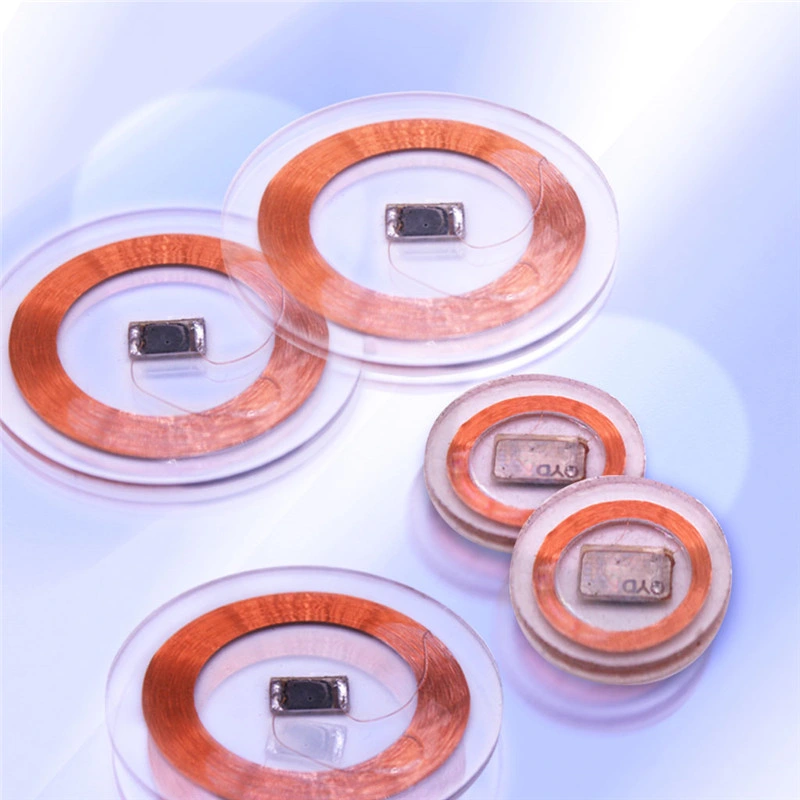

EM4200 125KHz RFID Access Control Systems PVC Contactless Coin Tag
Feature:
1, Compact, easy to carry, strong anti-interference, waterproof, anti-corrosion
2, Identify the stability of penetration, has Korfball unique identification code
3, Mainly for enterprise/campus card, bus card, highway fees, parking, residential management
Feature:
1, Compact, easy to carry, strong anti-interference, waterproof, anti-corrosion
2, Identify the stability of penetration, has Korfball unique identification code
3, Mainly for enterprise/campus card, bus card, highway fees, parking, residential management
| Basic parameters | |||
| Types | Passive RFID tag | ||
| Working frequency | 125KHz, 13.56MHz | ||
| Protocol | ISO14443A, ISO15693 | ||
| Physical parameters | |||
| Size | 20mm, 25mm, 30mm or customized | ||
| Packaging Materials | PET, PVC, transparent PVC | ||
| Antenna | Copper coil, aluminum etching antenna | ||
| Craft | 4C offset print, Silk screen print, Inkjet print,Foil stamp, Encoding, Punch hole, Epoxy surface | ||
| Performance parameters | |||
| Chip | EM4200, HT4168, T5577, S50/S70, Ultralight EV1/Ultralight C,NTAG213/216, I CODE SLIX, FM1108, Desfire2K/4K/8K | ||
| Storage | Related to the chip | ||
| Operating mode | Can read and write | ||
| Data retention | > 10 years | ||
| Endurance | 100,000 times | ||
| Reading distance | 0-5cm (the reading range is related to the working condition and reader) | ||
| Environmental parameters | |||
| Operating temperature | (-25 ºC ~ + 55 ºC) | ||
| Storage temperature | (-35 ºC ~ + 75 ºC) | ||
| Typical applications | |||
| Applications | Identification, time and attendance systems, access control systems, personnel management, accounting management, etc. | ||
| Package | |||
| Packaging Information | flexible packaging | ||
