TAB-311-8 Folding auto gate remote control road barrier for parking access
Features:
Special design of connecting rod transmission mechanism, the brake lever slow start, fast run and slow stop, eliminate the jitter of the pole in running.
Special design of connecting rod transmission mechanism, the barrier pole will keep running in 90°arc.
Special design of spring balance mechanism, it's easy to adjust the strength of the spring.
With intelligent thermal protection device of the driving mechanism, when the motor temperature rise to 140 ° during frequently use, the system will stop working automatically. When the motor temperature down to 80 °, the system return to work automatically.
Apply double protection of the photoelectric limit switch and the mechanical limit switch for the movement.
With vehicle loop detector and infrared emission interface and the air pressure interface in the main controller.
Specifications:
Voltage | AC220V(110V) |
Frequency | AC 50/60HZ |
Power | 80W |
Length | < 4m |
Switching speed | 3s |
Working temperature | -35°C-75°C |
Protection class | IP44 |
Body Material | Cold rolled steel |
Rail arm Material | Aluminum alloy |
Surface handle | Spray lacquer |
Open method | Read card, remote control ,manual button |
Remote control distance | 10-60m |
Weight of barrier | 50KG |
Barrier | 338*275*1030mm (L*W*H) |
About us:
Techcrepower is one very professional electric lock products supplier since 2006, we had provided millions of various high quality electriclock including electromagnetic lock e.g.
60kgs/70kgs/180kgs/280kgs/350kgs/500kgs/750kgs, very low temperature electric bolt lock and strike lock... and the peripheral door access control items exit switch, power supply…
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!

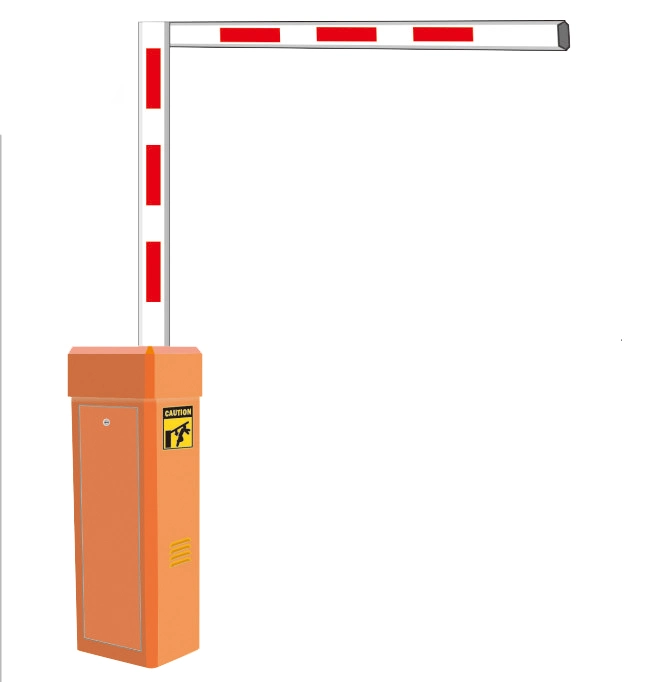

Product Photo
